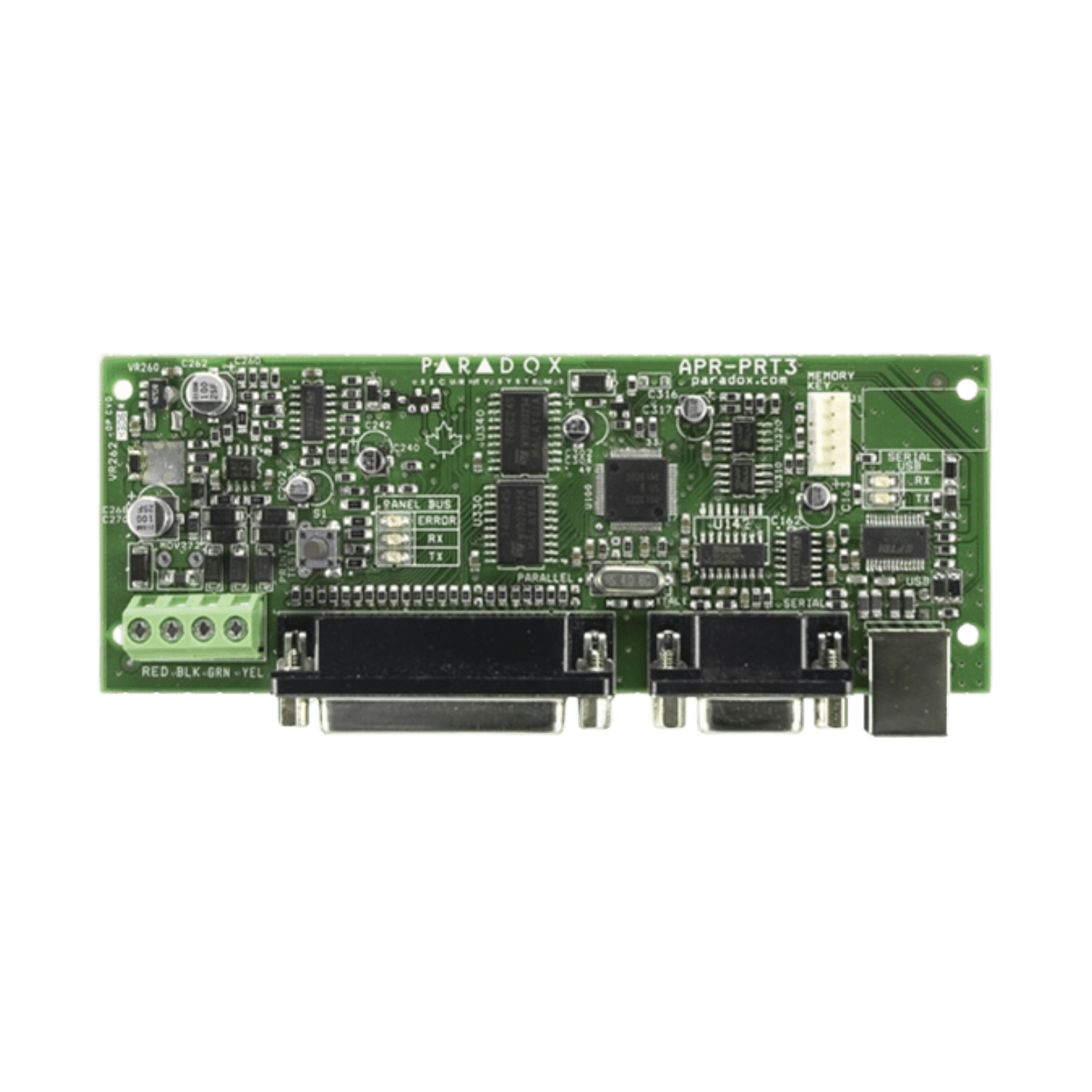

PRT3 Integration Module

When used with an EVO Series or DGP-848 (V4.11 or higher) control panel; the Printer Module can also be used as an interface between a home automation system and your control panel

Features:
In-field firmware upgradeable via a CONV4USB and Babyware
Supports ASCII / C-BUS protocols
16 virtual inputs to trigger an action in the EVO control panel based on an event received from the peripheral system using ASCII or C-BUS protocol
30 virtual PGMs to trigger an action in the peripheral system using ASCII or CBUS protocol based on an event received from the EVO control panel
USB port for PC connections
Provides an interface between an EVO control panel and a third party peripheral system
Automatically/manually print reports of zones/systems event via printer and/or PC
Parallel and serial port for printer connections
Assign to one or more partitions
2048 event buffer
Requires small metal box

PRT3 Integration Module

When used with an EVO Series or DGP-848 (V4.11 or higher) control panel; the Printer Module can also be used as an interface between a home automation system and your control panel

Features:
In-field firmware upgradeable via a CONV4USB and Babyware
Supports ASCII / C-BUS protocols
16 virtual inputs to trigger an action in the EVO control panel based on an event received from the peripheral system using ASCII or C-BUS protocol
30 virtual PGMs to trigger an action in the peripheral system using ASCII or CBUS protocol based on an event received from the EVO control panel
USB port for PC connections
Provides an interface between an EVO control panel and a third party peripheral system
Automatically/manually print reports of zones/systems event via printer and/or PC
Parallel and serial port for printer connections
Assign to one or more partitions
2048 event buffer
Requires small metal box
