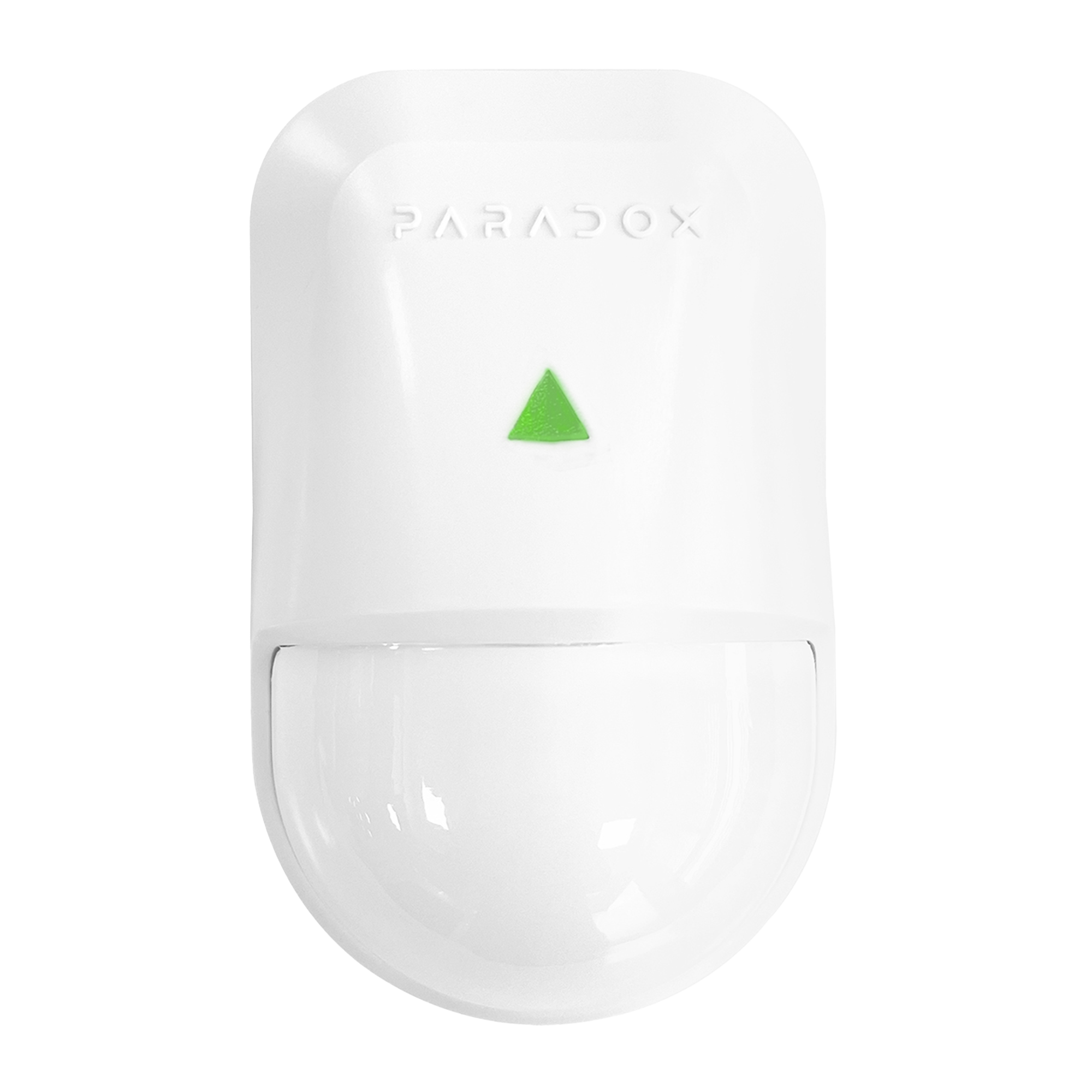

Paradox PMD5M Sensor is a compact indoor motion detector with a dual-element PIR sensor and advanced down-looking creep zone for enhanced coverage. With a 110° detection range up to 12m, it offers reliable performance in a small form factor. It features 6+ years of battery life, adjustable sensitivity, and remote firmware updates via BlueEye.

Features:
-Miniature indoor motion detector.
-Dual-element PIR sensor.
-Super creep down-looking beam.
-Fast and easy installation with integrated bracket.
-Sensitivity level and detection energy control.
-Multiple processing modes.
-Temperature sensor.
-6+ years of battery life with normal usage.
-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247.

Technical Specifications:
Wireless Type: GFSK two-way with frequency and encryption hopping.
Sensor Type: Dual rectangular element.
Coverage: 110° - 12m (39 ft) x 12m (39 ft).
Detection Speed: 0.2m/s to 3.5m/s (0.6 ft/s to 11.5 ft/s).
RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.
RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.
Transmission Time: Less than 20 ms.
Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes.
Status Indicators: Battery, temperature, TX/RX values.
Battery: 1 x CR123 lithium, 6+ years of battery life with normal usage.
Low Battery: Voltage 2.4V.
Low Battery: Restored.
Voltage 2.7V: (on powerup only).
Installation Environment: Indoor.
Firmware Upgrade: Remotely over the air, via BlueEye.
Operating Temperature: -20°C to +40°C (-4°F to 104°F).
Auto Learn: Yes.
Colors White.
Dimensions: 5.61W x 9.15H x 1.75D cm (2.2W x 3.6H x 0.7D in.).
Weight: 80 g.

Not Compatible with the MG/SP and EVO Ranges.
